Spin Flash Dryer/ Drying Equipment

Spin Flash Dryer/ Drying Equipment

  • Min.Order Quantity: 1 Set
  • Supply Ability: 600 Sets per Year
  • Port: Qingdao,China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-05-17
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  according to customer's request
  • Place of Origin:  Shandong,China
  • Brand Name:  shandong wintech machinery technology Co.,Ltd
  • Model Number:  WTSFD
  • Weight: 1200.000 kg


The advantages of Spin Flash Dryer:

1This machine combines the whirl technology with the fluidity ejection and smashing step technologies
2The equipment is compact and small in size ,high in production efficiency and continuous in the production .It has realized that "a small equipment can perform the large production
3The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency is high
4The materiral stay time is very short .The quality of the final products is very good ,The machine can be used for drying the heat sensitive materials
5For the negative pressure or the micro-negative pressure operation ,the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution

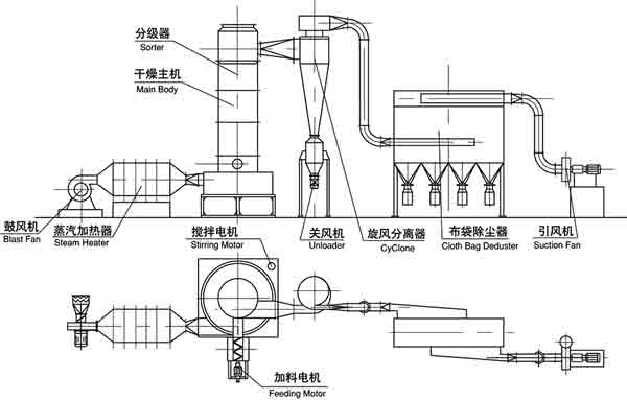

The work principle:

The hot air enters into the bottom of the dryer in tangent direction.Under the driving of the stirrer,a powerful rotating wind area is formed.The paste state materials enter into the dryer through the screw charger.Under the powerful function effect of stirring at high-speed roation,the materials are distributed under the function of s trike,friction and shearing force.The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried.The dried materials after the de-watering will go up with the hot-air flow.The grading rings will stop and keep the big particles.Small particles will be sidcharged out of the dryer from the ring center and will be collected in the cyclone and dust collector.The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom.

Materials are to be dried:

1) Inorganic: cryolite, ultra-fine calcium carbonate, tellurium dioxide, manganese dioxide, sodium fluoride, kaolin, zirconium silicate, aluminum silicate,sodium thiosulfate, zinc sulfide, sulfate, cuprous chloride, calcium hypochlorite, boric acid, borax, hydroxide, light magnesium carbonate,iron oxide, quartz sand, titanium dioxide, iron oxide red, antimony oxide.

2)Organic: amino-anthraquinone, benzoic acid, sodium oxalate, long-chain dicarboxylic acid, lead acetate, hydroquinone, anthraquinone, sodium dichloroisocyanurate, Calcium Pantothenate, cyclohexanone,  o-methyl benzoic acid, calcium citrate, sodium trichloroisocyanuric acid, sodium salicylate.

3)Polymers: PE, powdered styrene-butadiene rubber, sulfonated phenolic resins, polyvinyl chloride resins, polyvinyl acetate.
4)Dyes and Pigments: indigo, lead chromate, strontium chromate,yellow alkaline, medium black, lemon yellow, phthalocyanine blue, iron oxide black, iron oxide yellow, a neutral black.

5)Medicine: Amidopyrine, protein powder, nucleotide, guanosine.

6)Pesticides: atrazine, Abamectin, Bataan, chlorothalonil, mefenacet pyridaben, imidacloprid, glyphosate, mancozeb, paclobutrazol, fenoxaprop, Dan sterilization, insecticide Dan, monosultap, Bisultap, triphenyltin acetate, mites sweep net, Tricyclazole, double Gan phosphine.

7)Chemical Agents: white carbon black, to promote the agent D, accelerator TMTD, molecular sieve, activated clay, TBSI CZ, TBSI DM, TBSI M, TBSI TMTD, TBSI ZDC, phosphate Dibasic Lead acid, stearic acid salt.

8)Food and feed additives: Soy Protein Isolate, methionine chelate copper, starch, yeast powder, glucose.


Pre-sales Service:
Customization:
We can specially customize products if you tell us any special requests,such as spare parts, cylindrical tank, material, output, pump...

After-sales Service:

1. One-year free warranty and life-long maintenance service
2. Equipment operation and maintenance vedio guide for the customers
3. Help to do worker training
4. On-line support every day


FAQ:

1.Q:Are you a factory or trading company?
  A:We are one of the largest evaporator manufactory in China

2.Q:Can we visit your factory before placing orders?
  A:Sure,warmly welcome to our factory!

3.Q:What's the info needed if I send one inquiry?
  A:Pls tell us the working conditions,mediums,temperature,pressure,  equipment's material,size,quantity,and other special requests

4.Q:What is the MOQ?
  A:We accept loose quantity order,any trial orders or mixed order

5.Q:How does your factory do quality control?
  A:Quality is priority,we make relevant strict testing before delivery
    Our factory has already obtained ISO9001 quality and ISO 14001
    Environmental management system certificate



  • Size:  according to customer's request
  • Place of Origin:  Shandong,China
  • Brand Name:  shandong wintech machinery technology Co.,Ltd
  • Model Number:  WTSFD
  • Weight: 1200.000 kg


Technical Parameters:

Model

Barrel
Diameter
  (mm)

Main machine   Size (mm)

Installed   Power (KW)

Input   Air
  (m3/h)

Water   Evaporation (kg/h)

Height
  (m)

Site   Area (m2)

WTSFD-2

200

250×2800

10

300~800

10~20

4.0

15

WTSFD-4

400

500×3500

18

1250~2500

30~70

4.2

20

WTSFD-6

600

700×4200

25

2500~5000

40~200

5.2

28

WTSFD-8

800

900×4600

32

3000~8000

60~600

5.6

35

WTSFD-10

1000

1100×5000

47

5000~12500

100~1000

6.2

40

WTSFD-12

1200

1300×5200

56

10000~18000

150~1300

7.0

52

WTSFD-14

1400

1500×5400

65

14000~27000

2000~1600

8.0

68

WTSFD-16

1600

1700×6000

75

18000~36000

250~2000

8.0

80

Note: Water   evaporation is related with the material characteristic and the inlet and   outlet air temperature.
